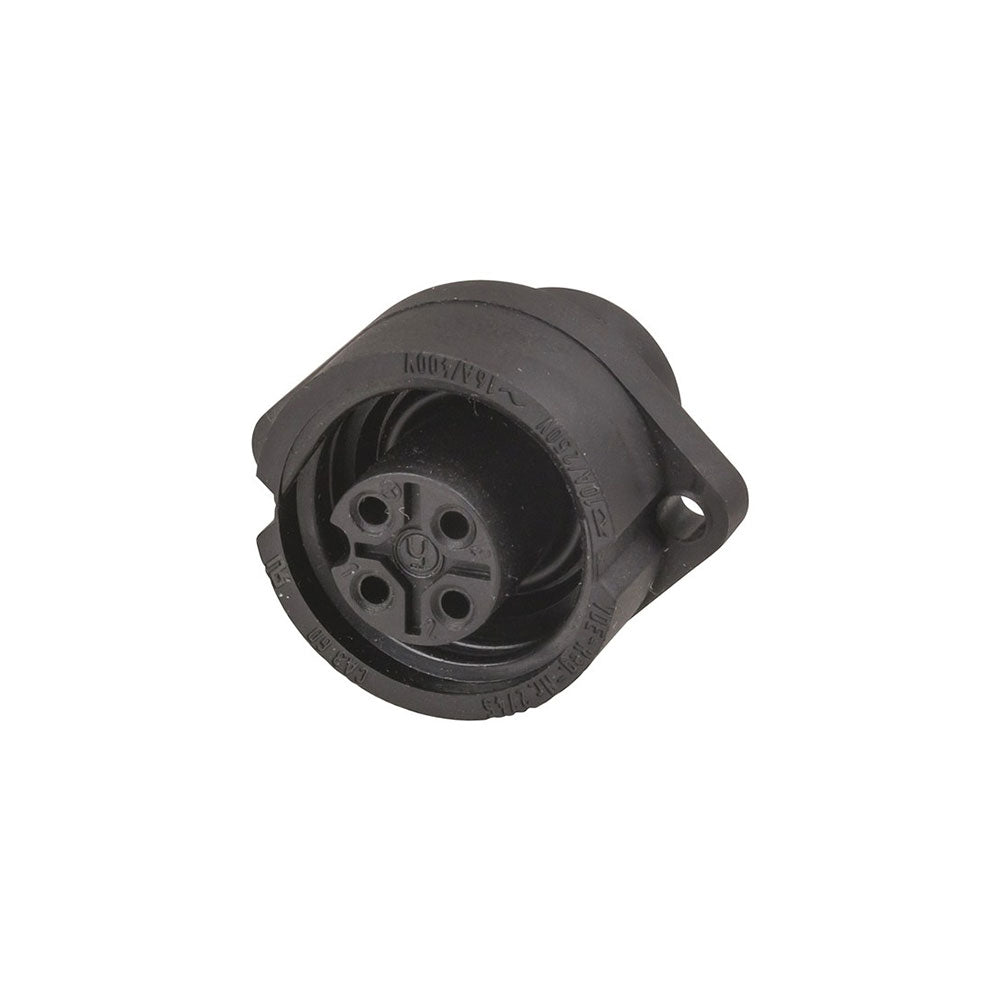

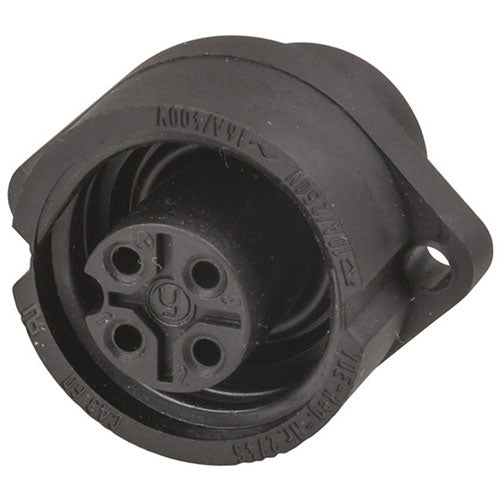

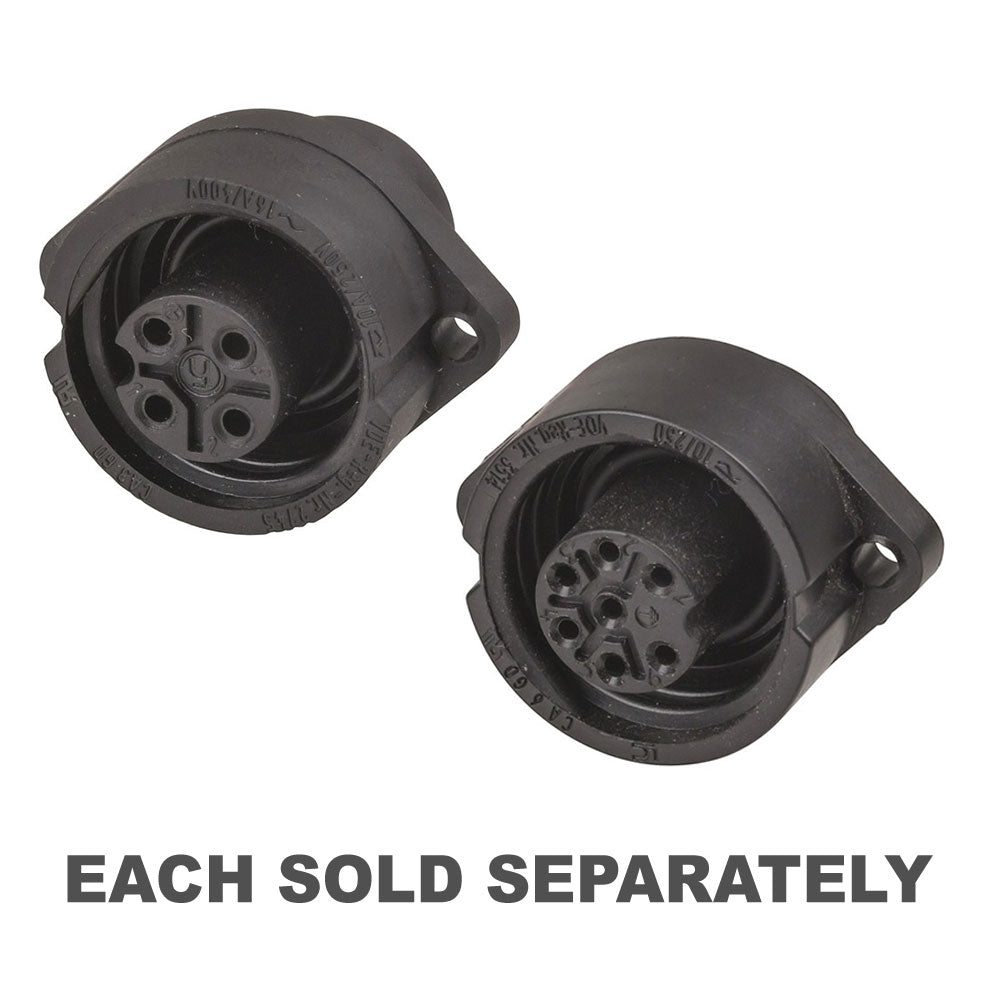

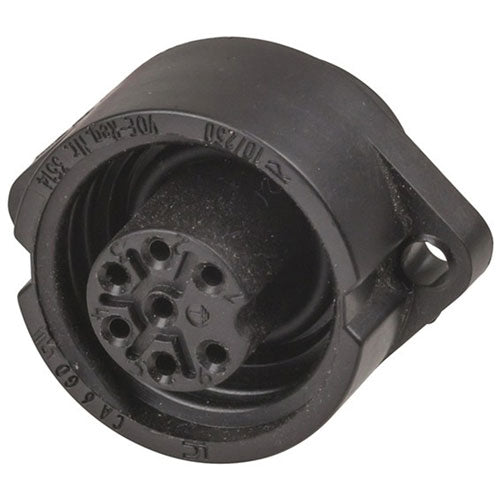

Pre-earth CA Series Panel Socket
Pre-earth CA Series Panel Socket
Pre-earth CA Series Panel Socket
Pre-earth CA Series Panel Socket
Pre-earth CA Series Panel Socket
Převrátit obrázek a přiblížit Kliknutím na obrázek přiblížíte
Pre-earth CA Series Panel SocketPre-earth CA Series Panel SocketPre-earth CA Series Panel SocketPre-earth CA Series Panel SocketPre-earth CA Series Panel Socket

Pre-earth CA Series Panel Socket

HirschmannSKU: 198429

    • Insulation resistance: ≥ 10^8ohm
    • Contact Resistance: ≤5mohm
    • Contact Material: Silver
    • Contact Screw: Solder
    • Wire Conductor (max): 2.5mm²
    • Temperature range: -40DegC to + 100DegC
    • Protection: IP67 to IEC60529/DIN40050
    • Housing: Polyamide 6.6
    • Strain Relief: Screw clamp/Ring & Gland Nut (9mm)

Cena:
$29.95
Sklad:
Na skladě

Back to School

Buy More Save More!

LatestBuy Sale Offers!

Payment & Security

American Express Apple Pay Bancontact Google Pay iDEAL Mastercard PayPal Shop Pay Union Pay Visa

Vaše platební údaje jsou zpracovávány bezpečně. Neukládáme údaje o kreditní kartě ani nemáme přístup k informacím o vaší kreditní kartě.

Popis

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.


Product Specifications

  • Insulation resistance: ≥ 10^8ohm
  • Contact Resistance: ≤5mohm
  • Contact Material: Silver
  • Contact Screw: Solder
  • Wire Conductor (max): 2.5mm²
  • Temperature range: -40DegC to + 100DegC
  • Protection: IP67 to IEC60529/DIN40050
  • Housing: Polyamide 6.6
  • Strain Relief: Screw clamp/Ring & Gland Nut (9mm)

Length : 3 cm Width : 4 cm
Height : 3 cm
