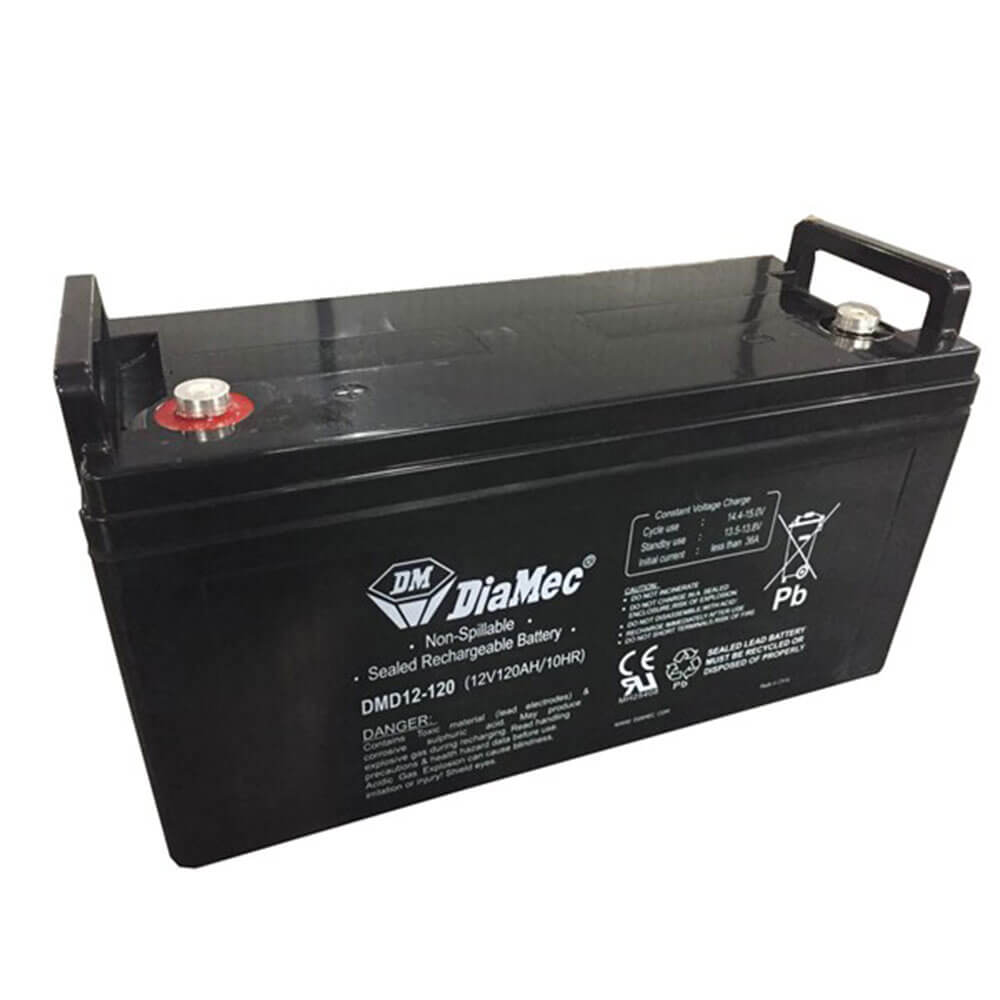

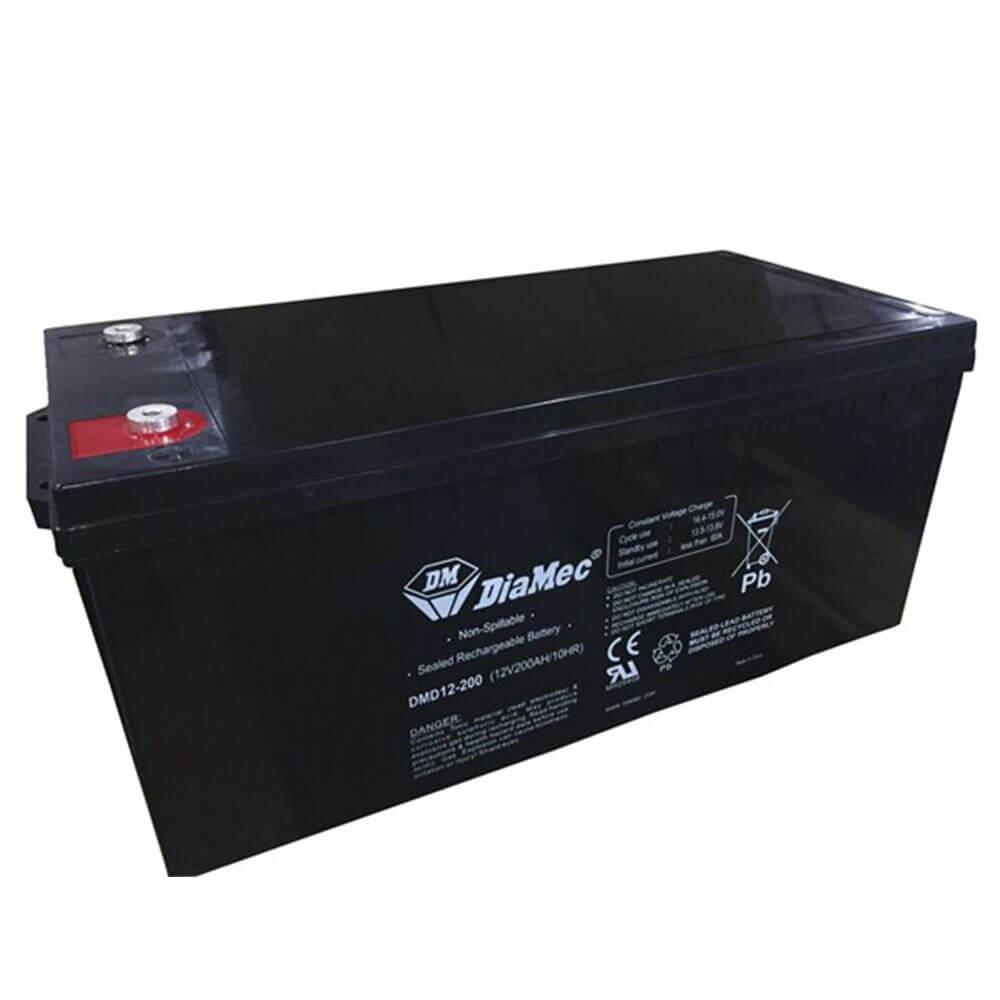

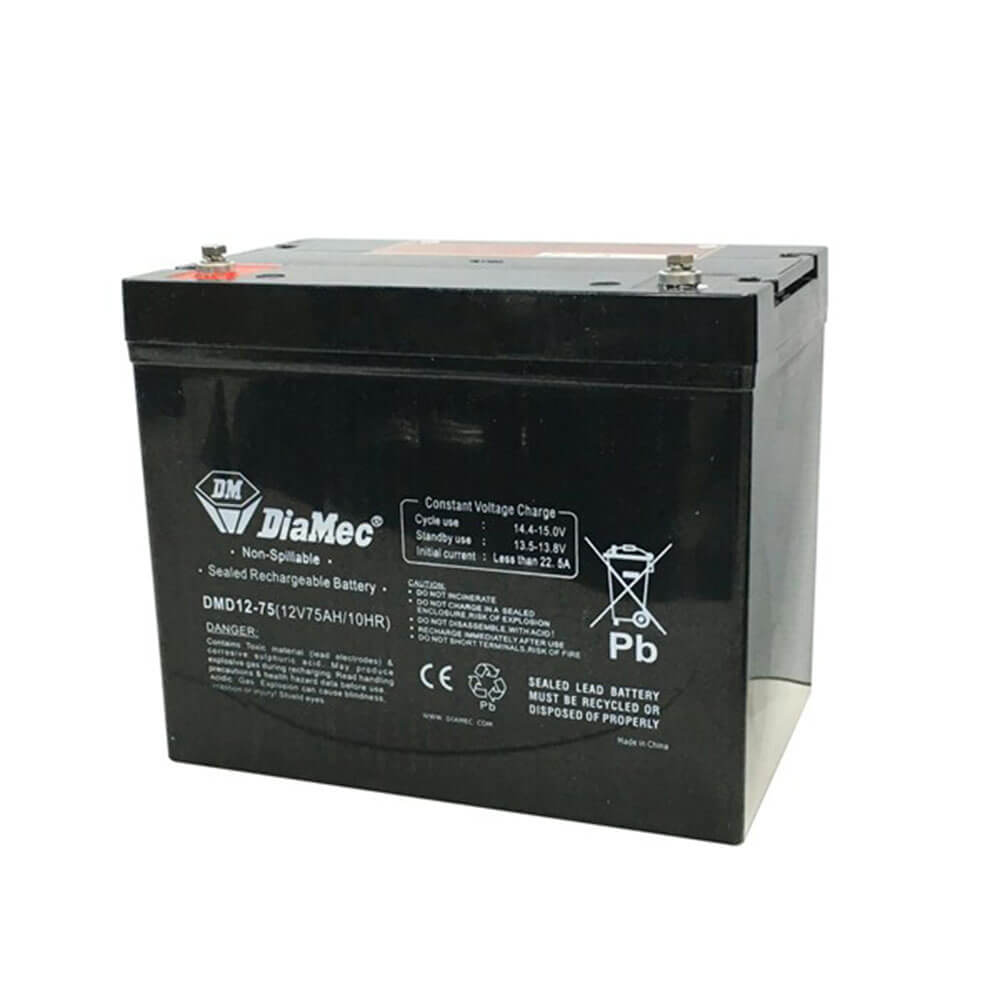

12V AGM Deep Cycle Battery

This product has an absorbent glass mat embedded in the structure of the plates. (There are 6 sets of plates, each 2.0V which makes up a “battery”; of plates, i.e. 12V). The mat does two things. It reinforces the lead frame of each plate, or cell, and it stops the plates from buckling under heavy discharge current). By helping make the innards of the battery virtually solid, you can mount it in any position, but it is still preferable, of course, to mount the battery upright, even for the sake of convenience of terminal access. They are an excellent product.

Note: It is important to not discharge an AGM more than 60% between recharge. Note: Due to excessive weight this product cannot be shipped by express or air freight and may attract a surcharge when shipped by road freight. Please contact our call centre for details.

Product Specifications

• DC Voltage : 12.0V
• Length : 260.0mm
• Width : 168.0mm
• Height : 211.0mm
• Weight : 20.7kg
• Recharging Voltage : 14.4V, 15.0V
• Standard Recharge Current : 8.0A
• Recharging Time : 10.0hr
• Leakage Properties : 91% charge after 3 months; 82% charge after 6 months; 64% charge after 12 months
• Battery Chemical Composition : Deep Cycle AGM
• Battery usage : Bulk Storage
• Battery Peak Current : 1125.0A
• Amp Hour Rating : 75.0Ah
• 20 Hour Capacity : 77.0Ah
• 10 Hour Capacity : 75.0Ah
• 5 Hour Capacity : 62.0Ah
• 1 Hour Capacity : 46.0Ah
• Connection Type : M6 Bolt/Nut
• Type of battery : SLA Block
